Our company manufactures and supply fly ash brick-making equipment (FAM-2520). This machine can produce 8 bricks at once. With expert engineering, the Fly Ash Brick Making Machine (FAM-2520) has been created. comprises, among other things, sturdy vibrators, conveyors, and pan mixers. Model FAM-2520 Fly Ash Brick Making Machine has a shift capacity of 11520 bricks.
| Particulars | FAM-2520 |
|---|---|
| Vibrator Motor | 15 hp double vibrator |
| Oil Cooling | Water Cooling 36 inch |
| Control Panel | P L C Based Control Panel |
| Pallet Feeding | Automatic |
| Mixer Type | Pan Mixer |
| Mixer Capacity | 400 kgs 2 nos |
| Pan Mixer Motor | 7.5 HP / 5.59 KW |
| Pan Mixer Gear Box | PLANETORY Gear Box |
| Mixer Speed | 24-28 RPM |
| Mixing Arms | 2 Nos. per Mixer |
| Crushing Rollers | 2 Nos. per Mixer |
| Pan Mixer Feeding | Manual / Automatic Feeding Available as Optional |
| Pan Mixer Gate | Manual / Hydraulic Gate Available as Optional |
| Pallet Size | 850 X 610 X 21 mm |
| Total Power | 57.5HP / 42.87 KW |
| Other | LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE + FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLLOW BLOCK |
| Particulars | FAM-2520 |
|---|---|
| Bricks Production Capacity per hour | 3360 Bricks/Hour |
| Bricks Production Capacity per 8 hour | 11520 Bricks/Hour |
| Belt Conveyor Width | 500 mm |
| Belt Conveyor Power | 2 HP / 1.5 KW |
| Belt Conveyor Feeding Capacity | 4 MT / Hour |
| Bricks Press Type | Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology |
| Bricks Press Body | Heavy Duty Window type Body Fabricated from PIPE |
| Bricks Press Capacity | 3360 Bricks/Hour |
| Bricks per Stroke | 8 Bricks |
| Bricks Size(mm) | 230 (L) X 110 (W) X 75 (H) Size Option Available |
| Hydraulic Motor | 15 HP / 7.5 KW |
| Trolley Feeder Motor | 2 HP / 1.5 KW |
| Hyd. Oil Tank Capacity | 450 liter |
| Hydraulic Valves | YUKEN Make / 24 DC |
| High Pressure Pump | YUKEN Make van pump |
| High Flow Pump | YUKEN Make van pump |
| Particulars | Image | Size | PCS/Hr | PCS / SHIFT (8 HRS) |
|---|---|---|---|---|

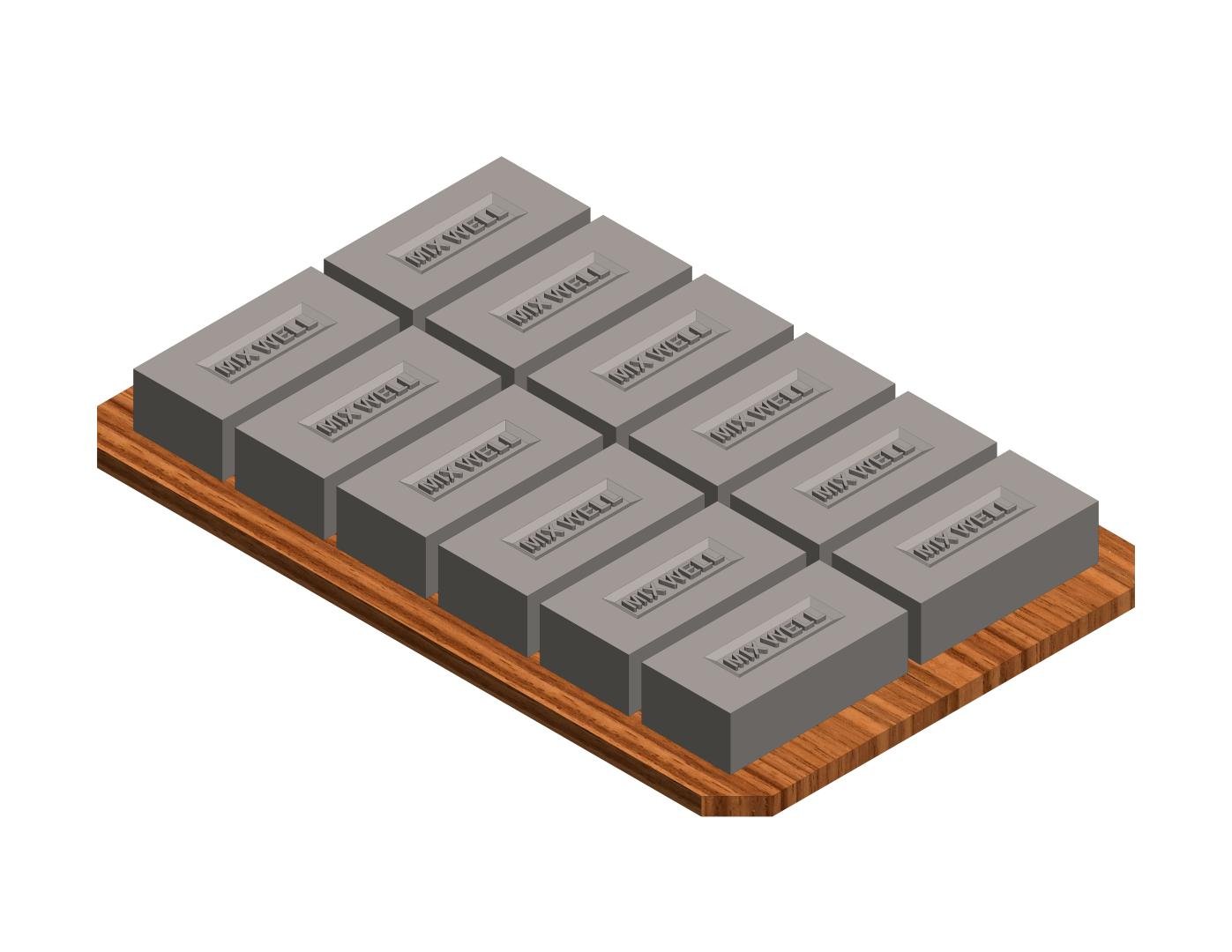

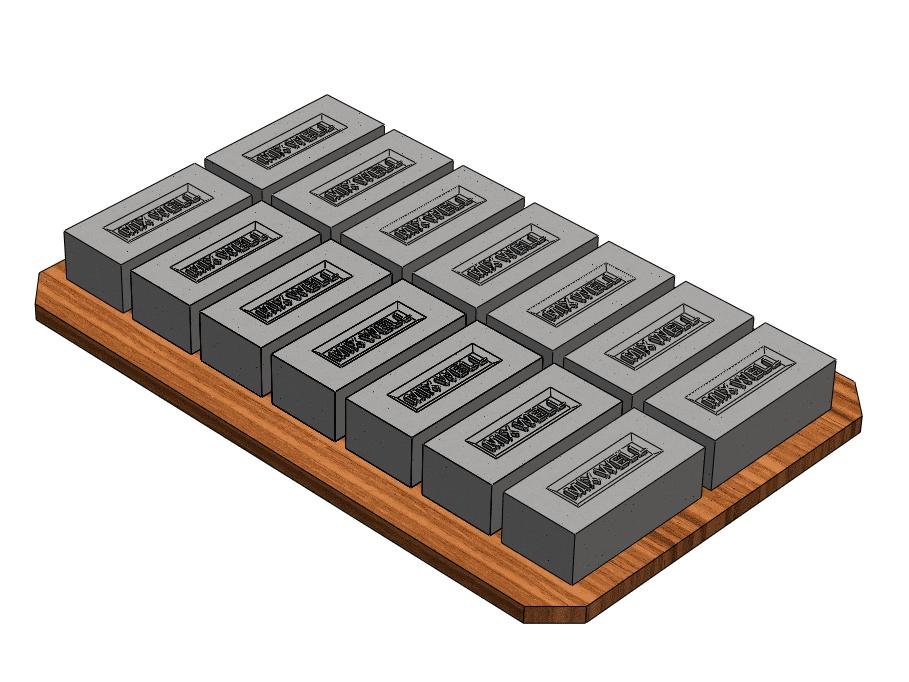

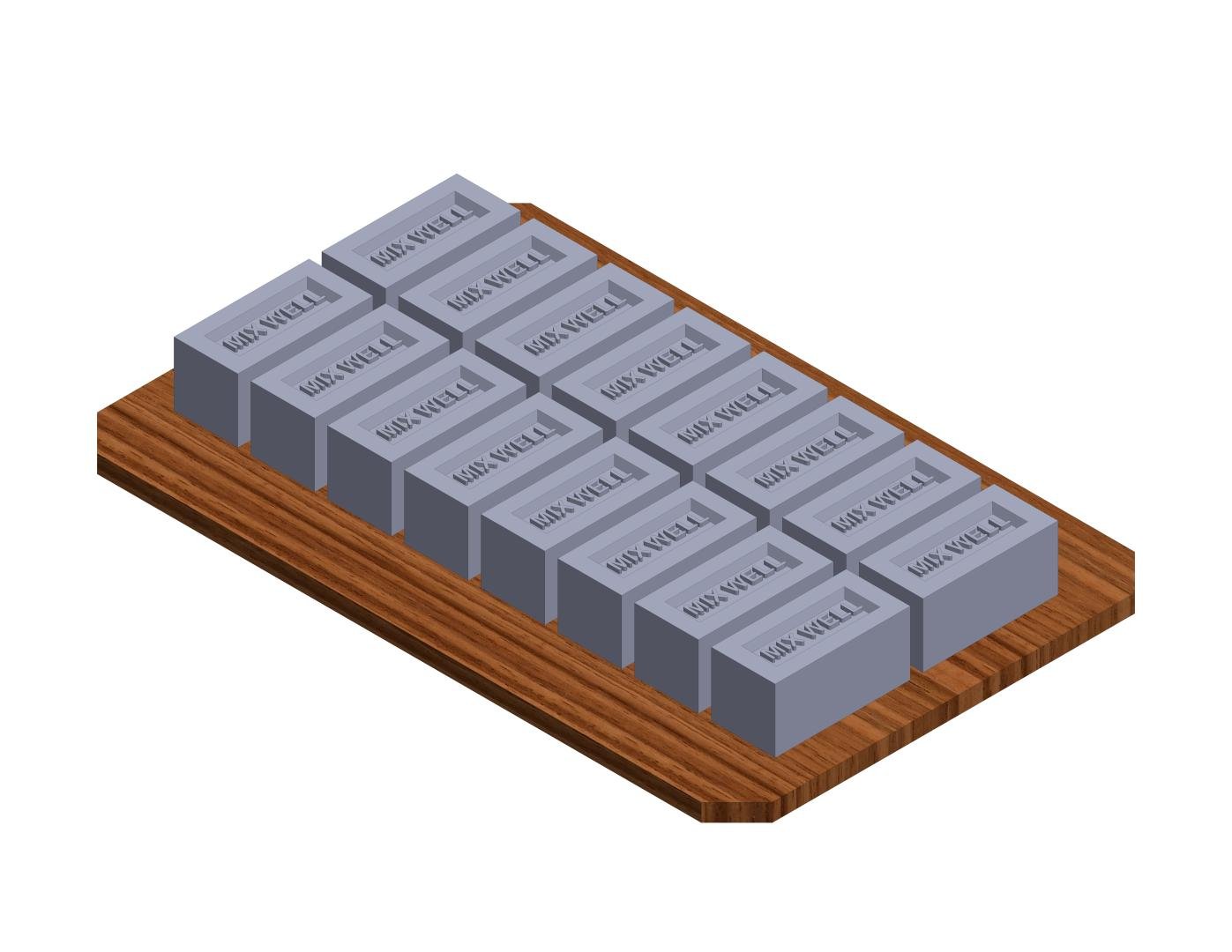

| FLY ASH BRICK |  |
230 x 110 x 75 | 3360 | 26880 |
| FLY ASH BRICK |  |
230 x 100 x 75 | 3360 | 26880 |
| FLY ASH BRICK |  |
250 x 120 x 75 | 2880 | 23040 |
| FLY ASH BRICK |  |
190 x 90 x 90 | 3840 | 30720 |

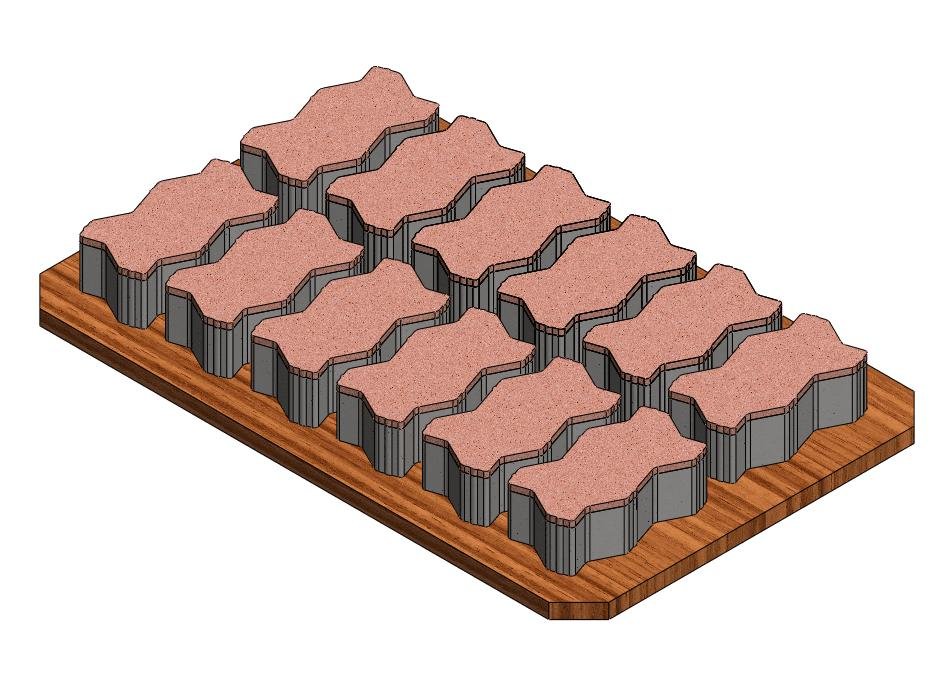

| ZIG ZAG PAVER BLOCK |  |
225 x 112.5 x 60 | 2880 | 23040 |
| ZIG ZAG PAVER BLOCK |  |
225 x 112.5 x 80 | 2880 | 23040 |
| I SHAPE PAVER |  |
200 x 165 x 60 | 2400 | 19200 |
| I SHAPE PAVER |  |
200 x 165 x 80 | 2400 | 19200 |

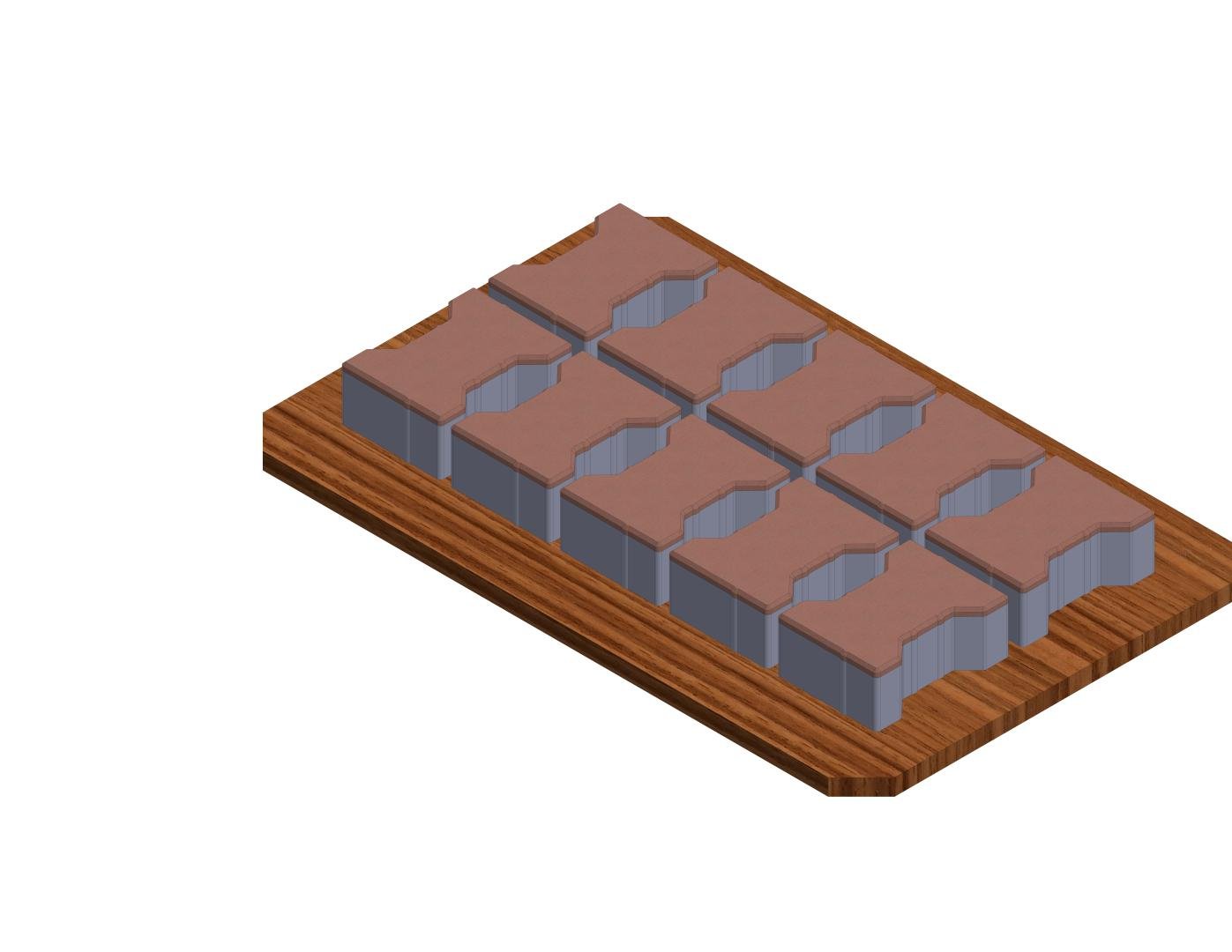

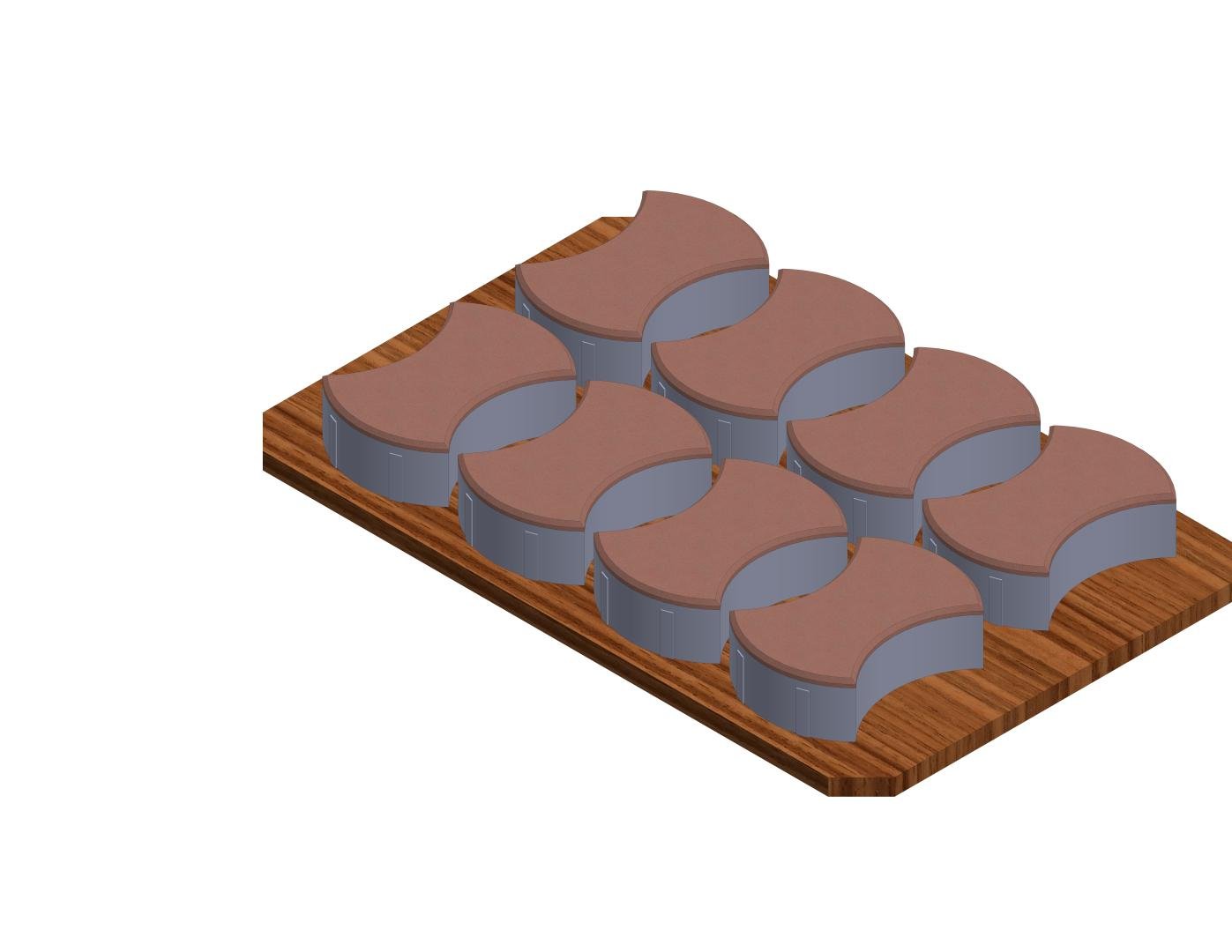

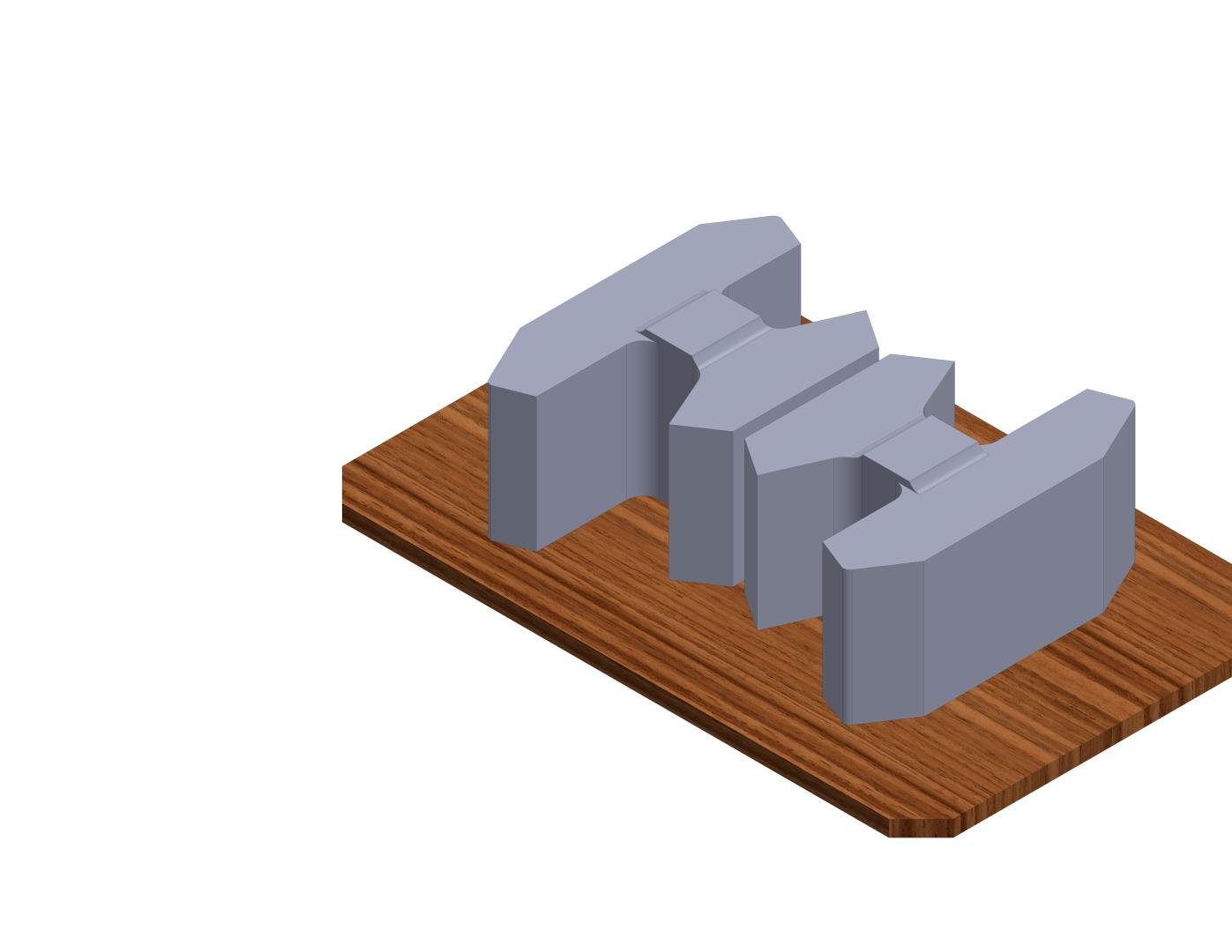

| DAMRU PAVER BLOCK |  |
250 x 150 x 80 | 2400 | 19200 |

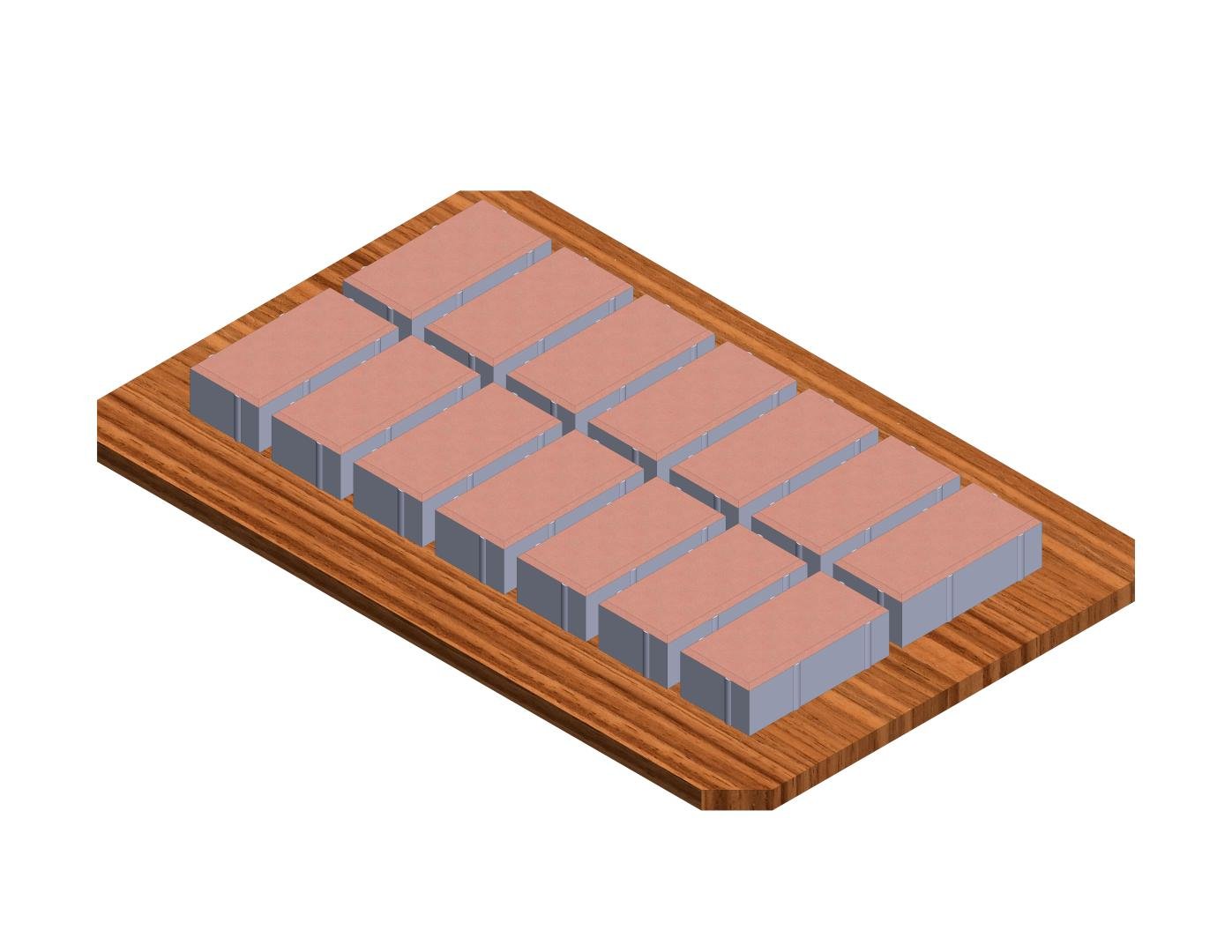

| BRICK PAVER |  |
200 x 100 x 100 | 3360 | 26880 |

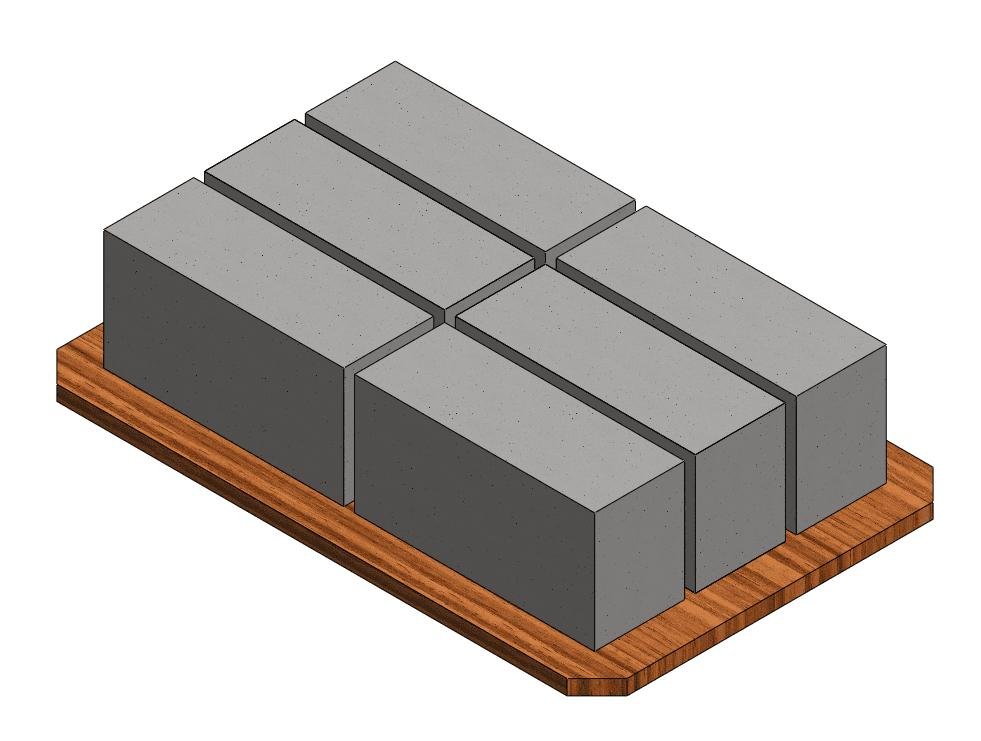

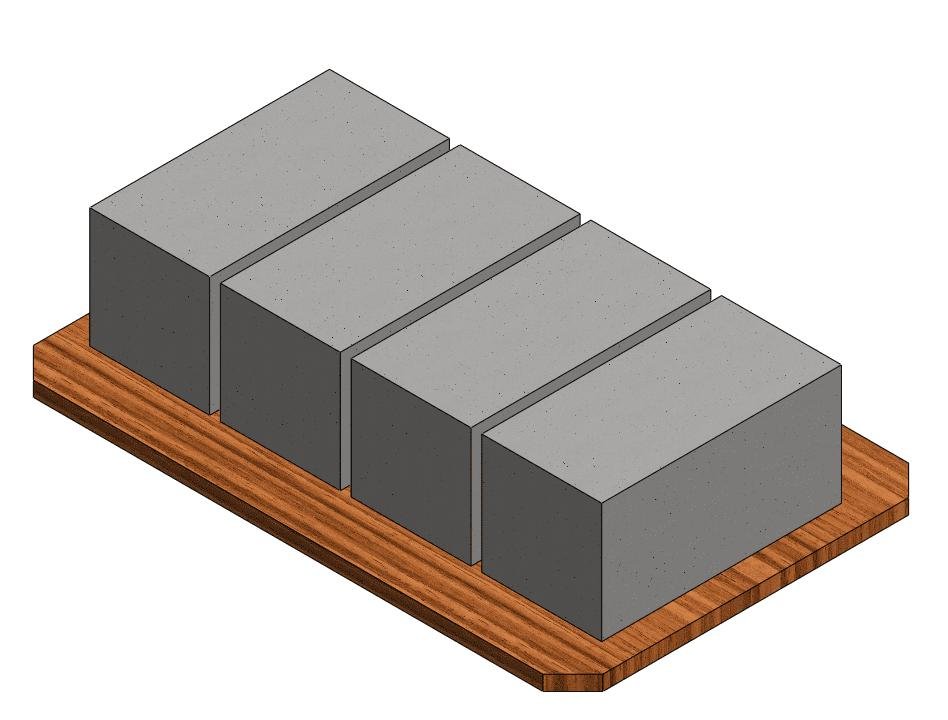

| SOLID CONCRETE BLOCK |  |
400 x 200 x 200 | 960 | 7680 |
| SOLID CONCRETE BLOCK |  |
400 x 200 x 150 | 1440 | 11520 |
| SOLID CONCRETE BLOCK |  |
400 x 200 x 100 | 1920 | 15360 |

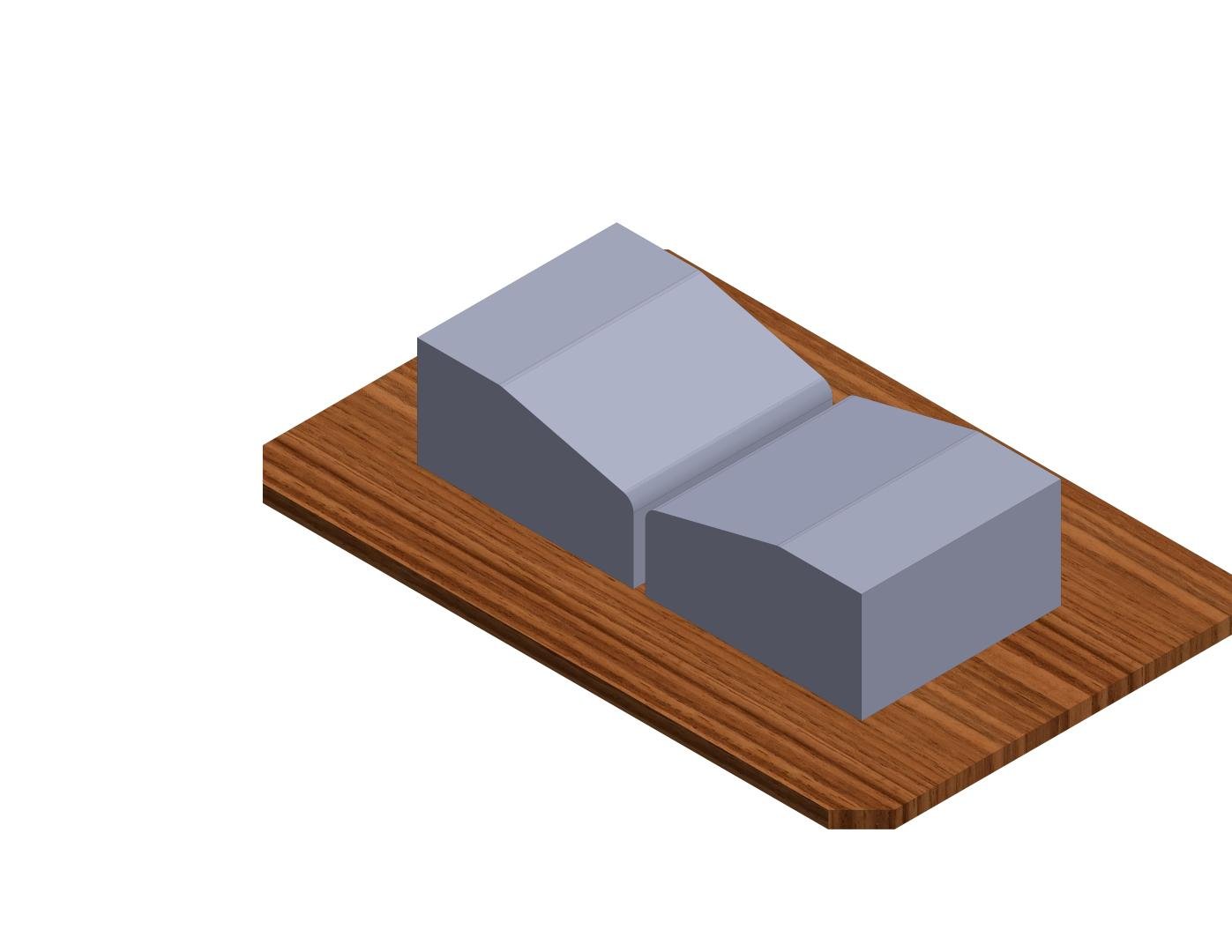

| KERBSTONE BLOCK |  |
330 x 300 x 100 | 480 | 3840 |
| RETAIN BLOCK |  |
100 x 100 x 100 | 480 | 3840 |

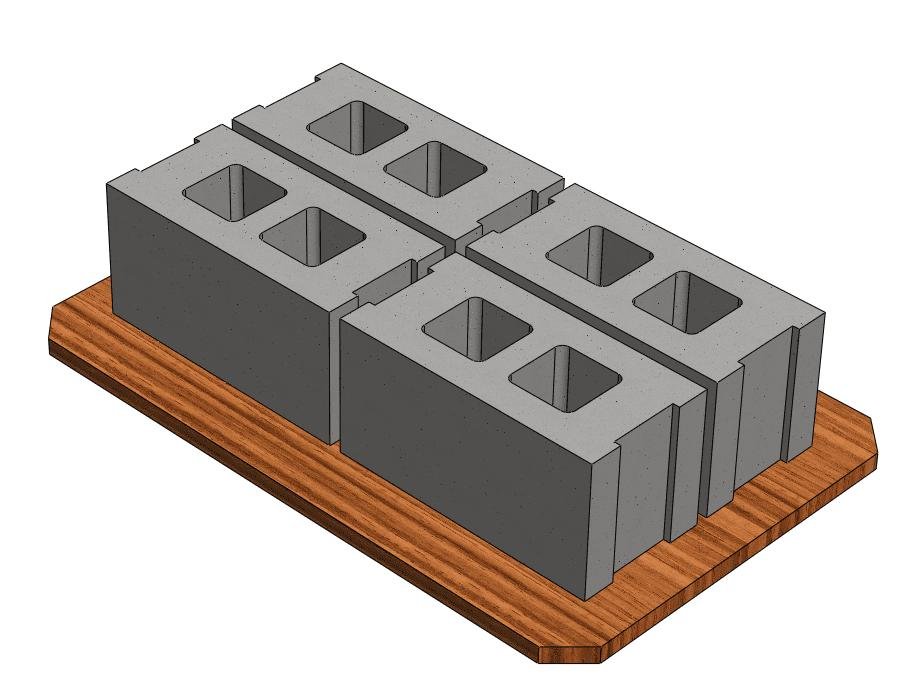

| HOLLOW BLOCK |  |
400 x 200 x 200 | 960 | 7680 |
