Our company produces and supplies the FAM-1080, a fully automatic fly ash brick making machine. This machine is capable of producing up to 12 bricks at once. The Fly Ash Brick Making Machine (FAM-1080) is a machine with impeccable engineering. Comprises, among other things, powerful vibrators, conveyors, and pan mixers. This Automatic Fly Ash Brick Making Machine model has a production capacity of 17200 bricks per shift (FAM-1080).
| Particulars | FAM-1080 |
|---|---|
| Vibrator Motor | 7.5 hp 5.6 kw |
| Oil Cooling | Water Cooling 36 inch |
| Control Panel | P L C Based Control Panel |
| Pallet Feeding | Automatic |
| Mixer Type | Pan Mixer |
| Mixer Capacity | 400 kgs |
| Pan Mixer Motor | 7.5 HP / 5.59 KW |
| Pan Mixer Gear Box | PLANETORY Gear Box |
| Mixer Speed | 24-28 RPM |
| Mixing Arms | 2 Nos. per Mixer |
| Crushing Rollers | 2 Nos. per Mixer |
| Pan Mixer Feeding | Manual / Automatic Feeding Available as Optional |
| Pan Mixer Gate | Manual / Hydraulic Gate Available as Optional |
| Pallet Size | 510 X 610 X 18 mm |
| Total Power | 29.5HP / 22 KW |
| Other | LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE + FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLLOW BLOCK |
| Particulars | FAM-1080 |
|---|---|
| Bricks Production Capacity per hour | 1440 Bricks/Hour |
| Bricks Production Capacity per 8 hour | 17200 Bricks/Hour |
| Belt Conveyor Width | 500 mm |
| Belt Conveyor Power | 2 HP / 1.5 KW |
| Belt Conveyor Feeding Capacity | 4 MT / Hour |
| Bricks Press Type | Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology |
| Bricks Press Body | Heavy Duty Window type Body Fabricated from PIPE |
| Bricks Press Capacity | 1440 Bricks/Hour |
| Bricks per Stroke | 12 Bricks |
| Bricks Size(mm) | 230 (L) X 110 (W) X 75 (H) Size Option Available |
| Hydraulic Motor | 10 HP / 7.5 KW |
| Trolley Feeder Motor | 2 HP / 1.5 KW |
| Hyd. Oil Tank Capacity | 450 liter |
| Hydraulic Valves | YUKEN Make / 24 DC |
| High Pressure Pump | YUKEN Make van pump |
| High Flow Pump | YUKEN Make van pump |
| Particulars | Image | Size | PCS/Hr | PCS / SHIFT (8 HRS) |
|---|---|---|---|---|

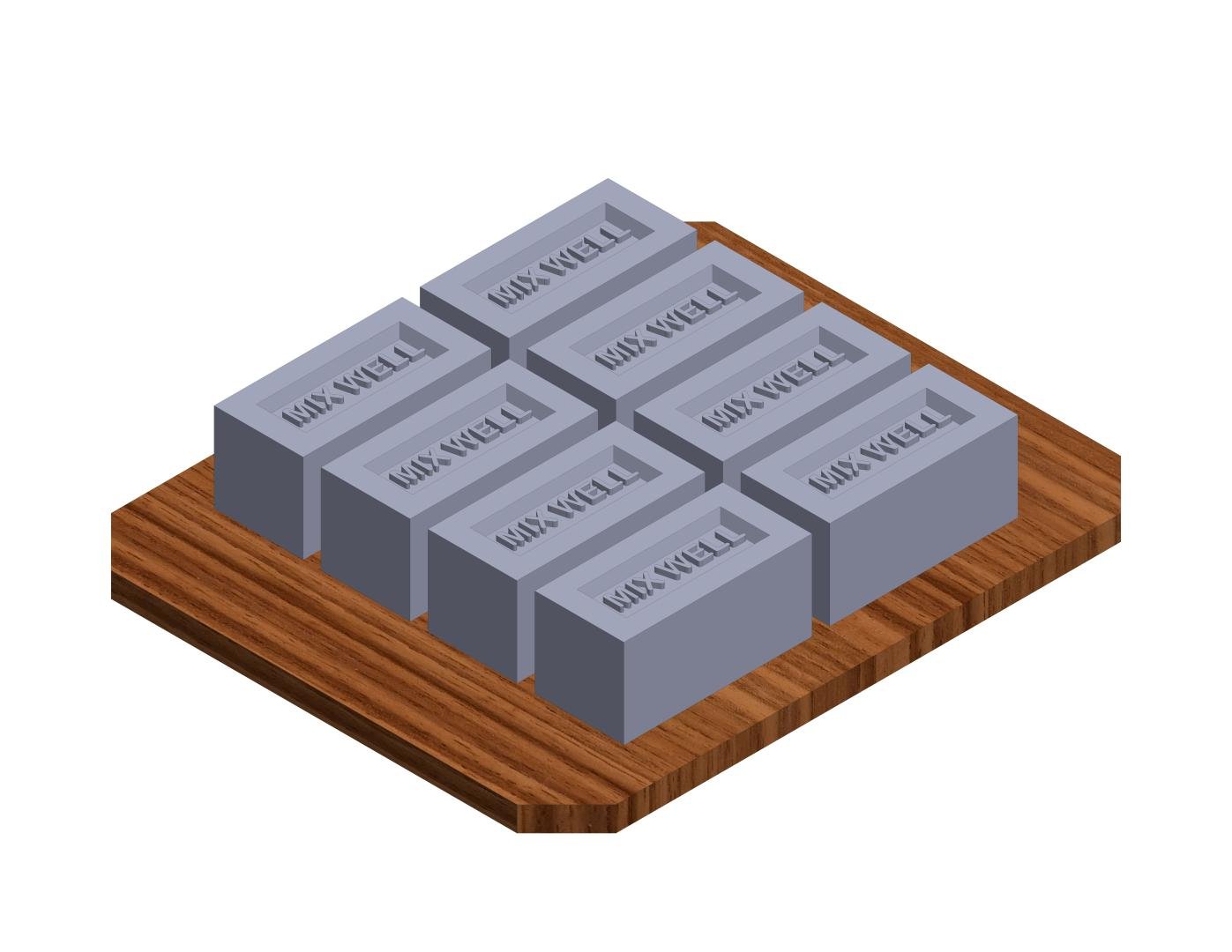

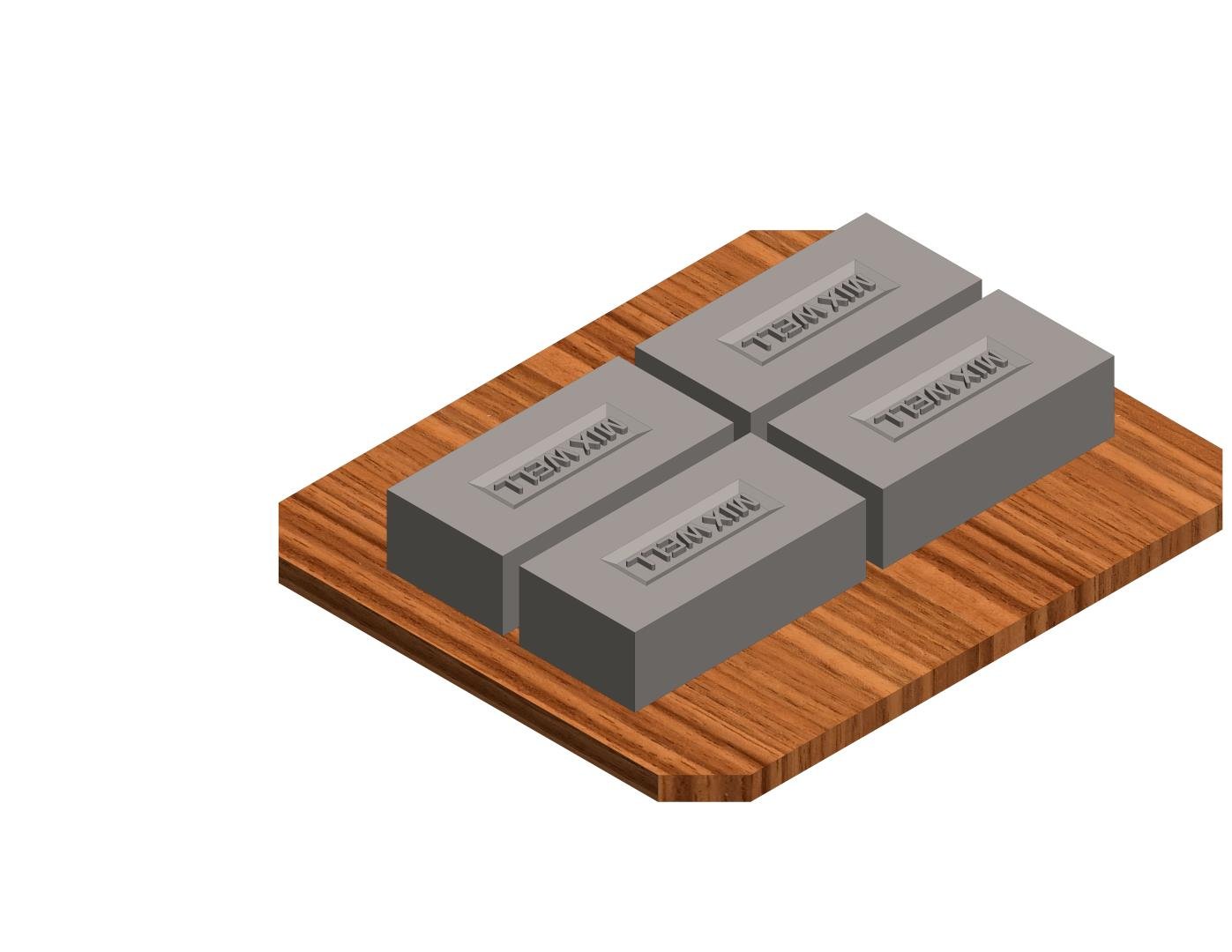

| FLY ASH BRICK |  |
230 x 110 x 75 | 1440 | 11520 |
| FLY ASH BRICK |  |
230 x 100 x 75 | 1440 | 11520 |

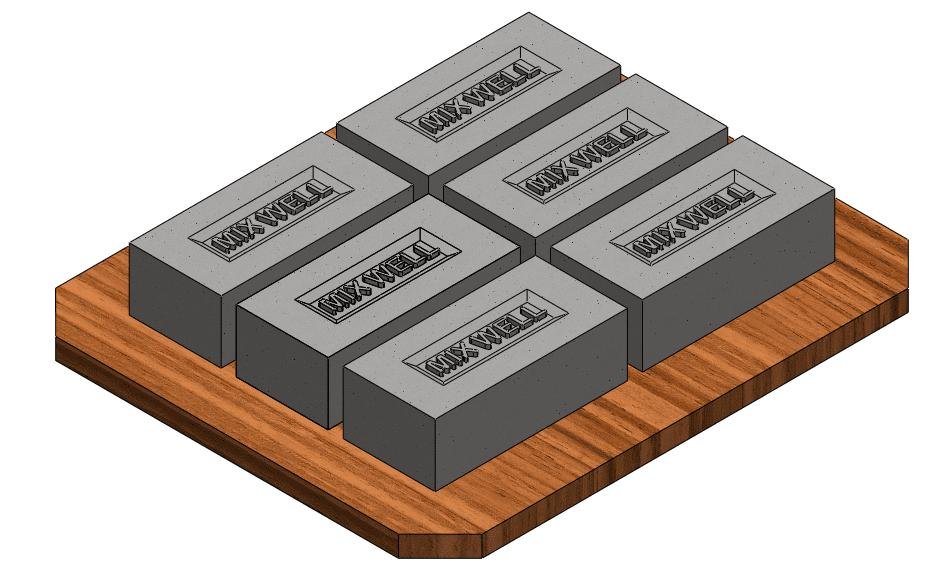

| FLY ASH BRICK |  |
250 x 120 x 75 | 960 | 7680 |
| FLY ASH BRICK |  |
190 x 90 x 90 | 1920 | 15360 |

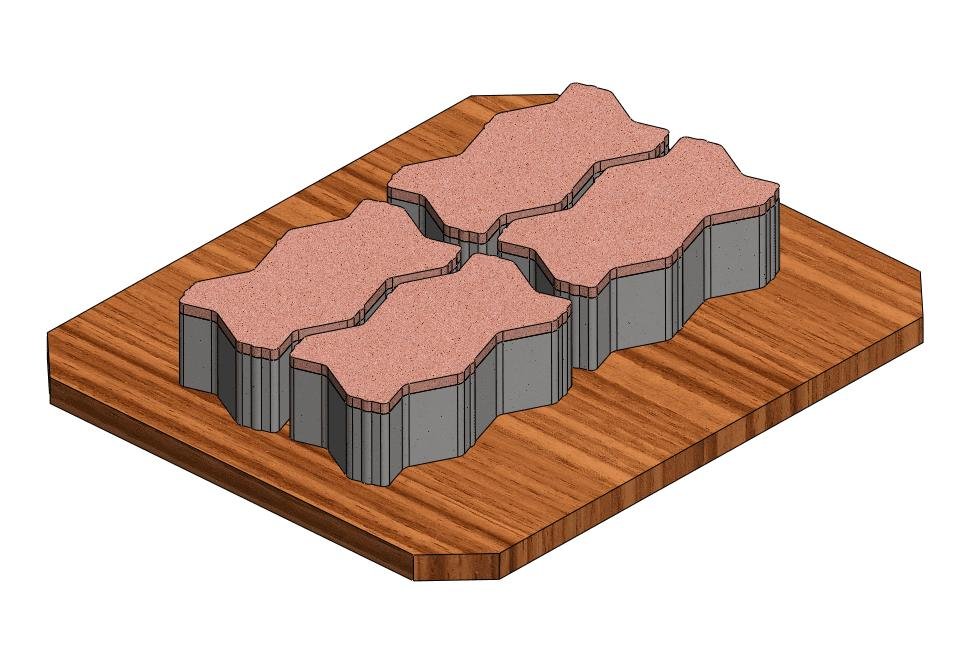

| ZIG ZAG PAVER BLOCK |  |
225 x 112.5 x 60 | 960 | 7680 |
| ZIG ZAG PAVER BLOCK |  |
225 x 112.5 x 80 | 960 | 7680 |

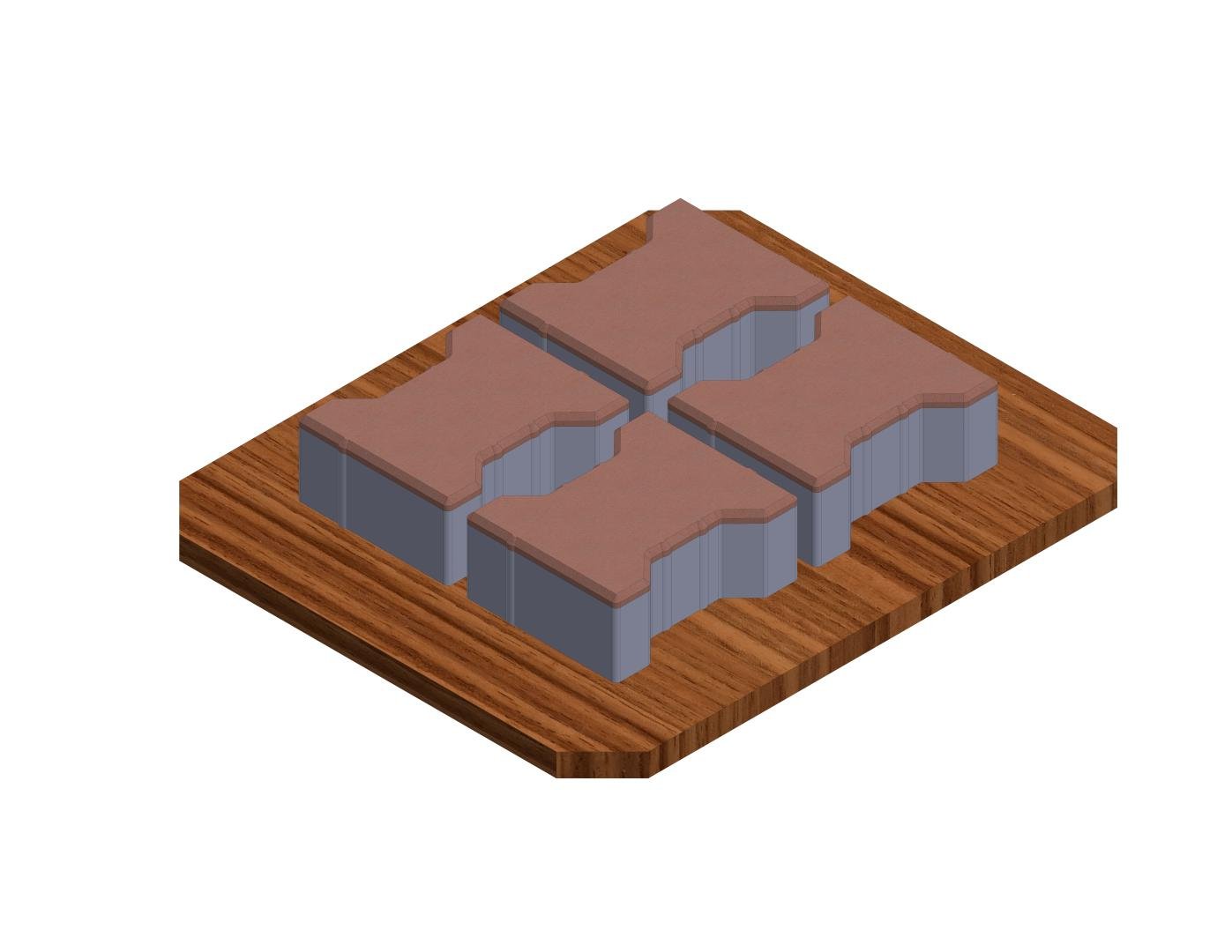

| I SHAPE PAVER |  |
200 x 165 x 60 | 960 | 7680 |
| I SHAPE PAVER |  |
200 x 165 x 80 | 960 | 7680 |

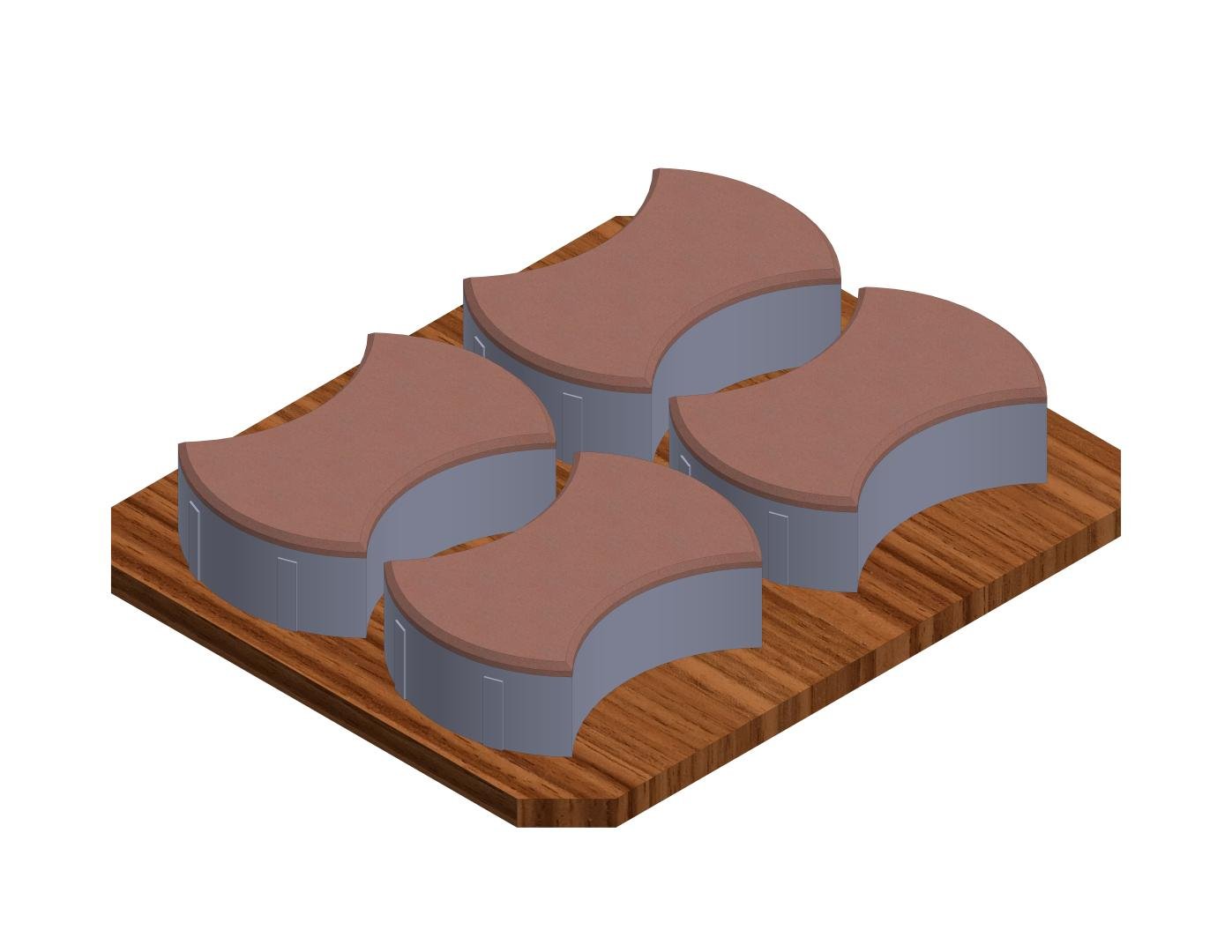

| DAMRU PAVER BLOCK |  |
250 x 150 x 80 | 960 | 7680 |

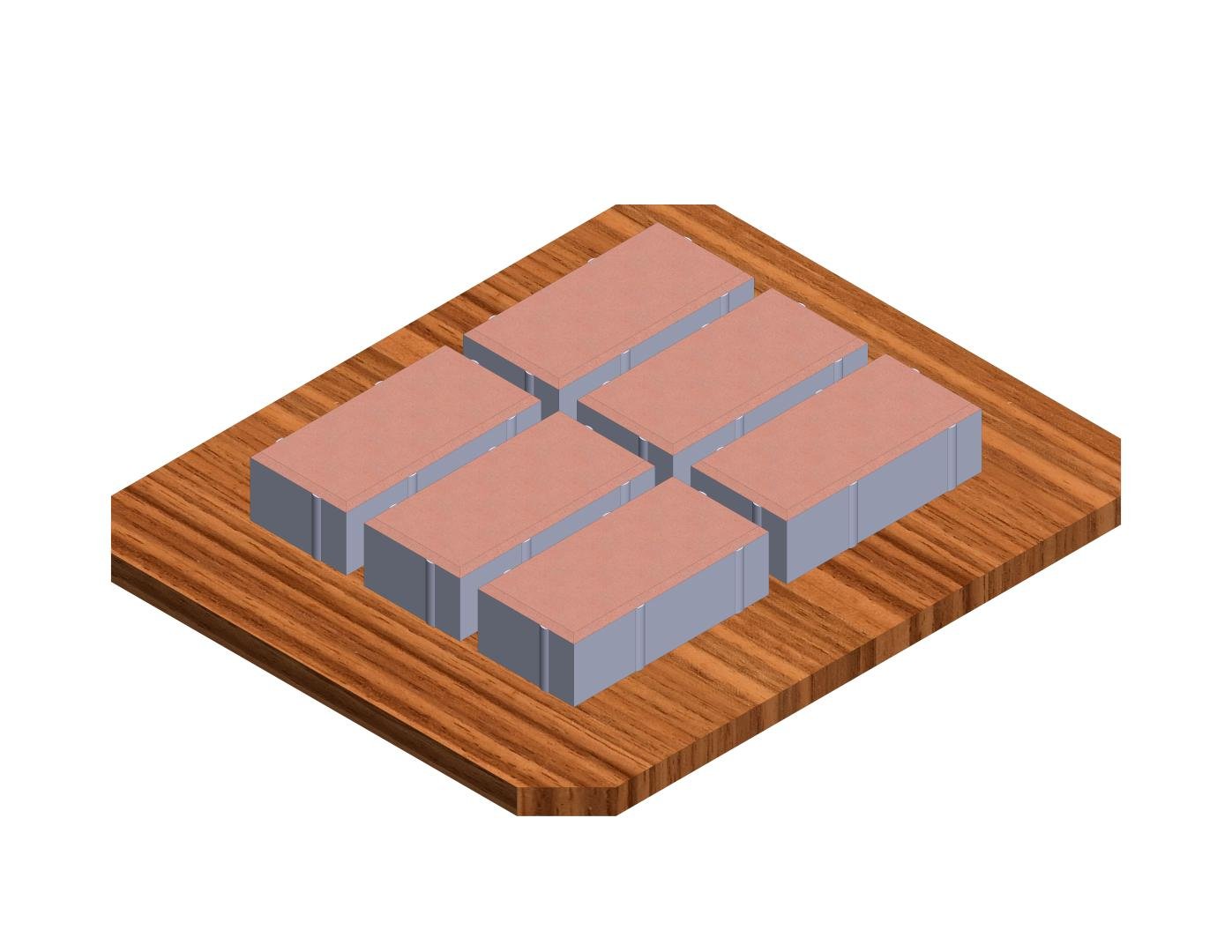

| BRICK PAVER |  |
200 x 100 x 100 | 1440 | 11520 |

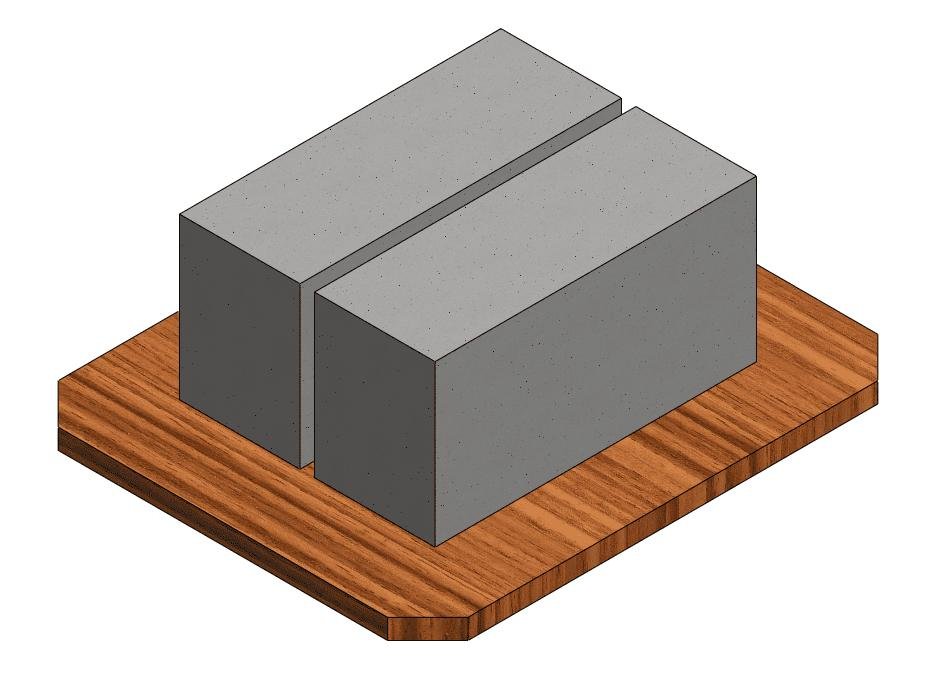

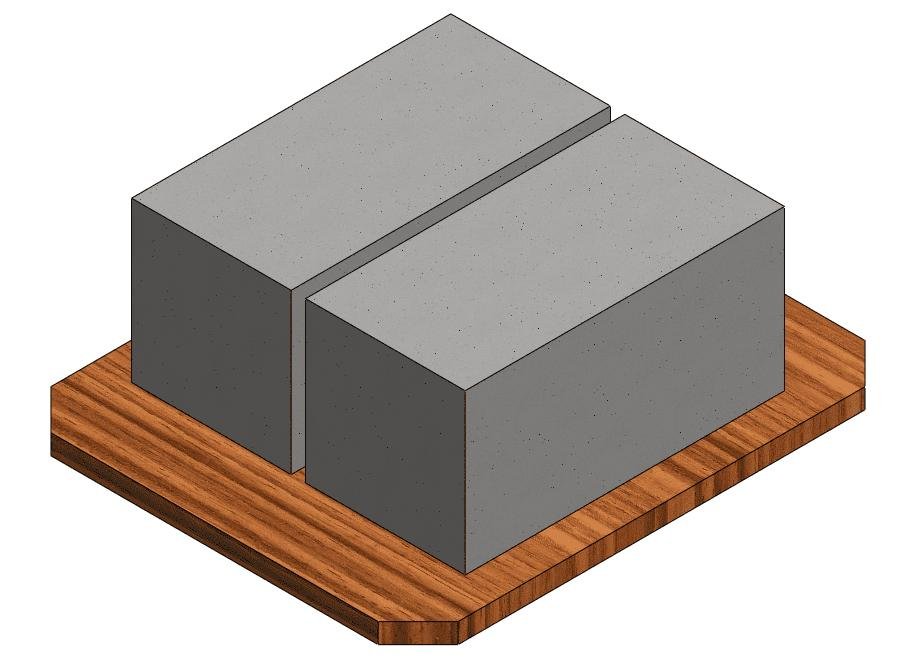

| SOLID CONCRETE BLOCK |  |
400 x 200 x 200 | 480 | 1440 |
| SOLID CONCRETE BLOCK |  |
400 x 200 x 150 | 480 | 1440 |

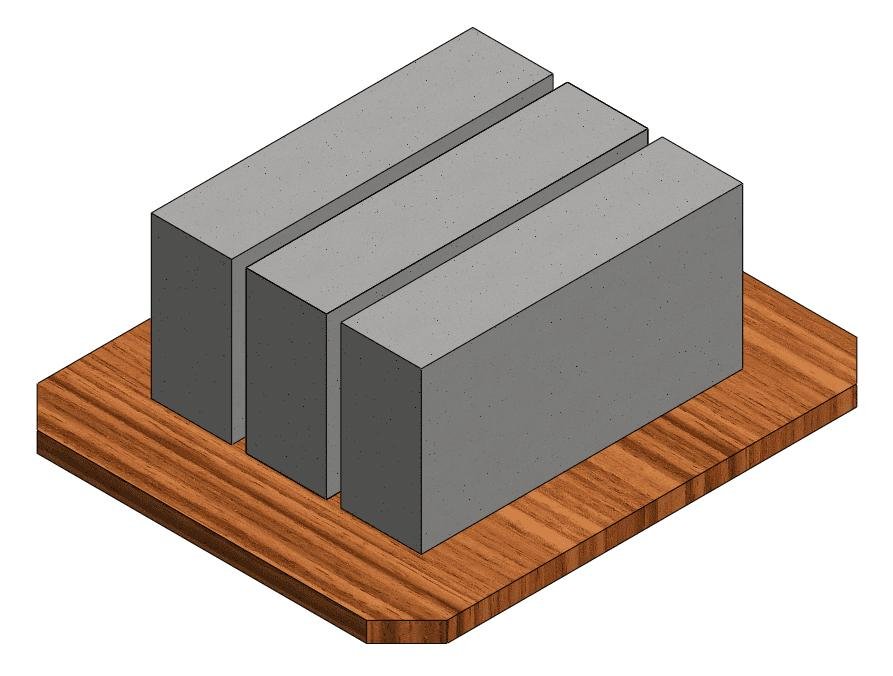

| SOLID CONCRETE BLOCK |  |
400 x 200 x 100 | 720 | 7680 |

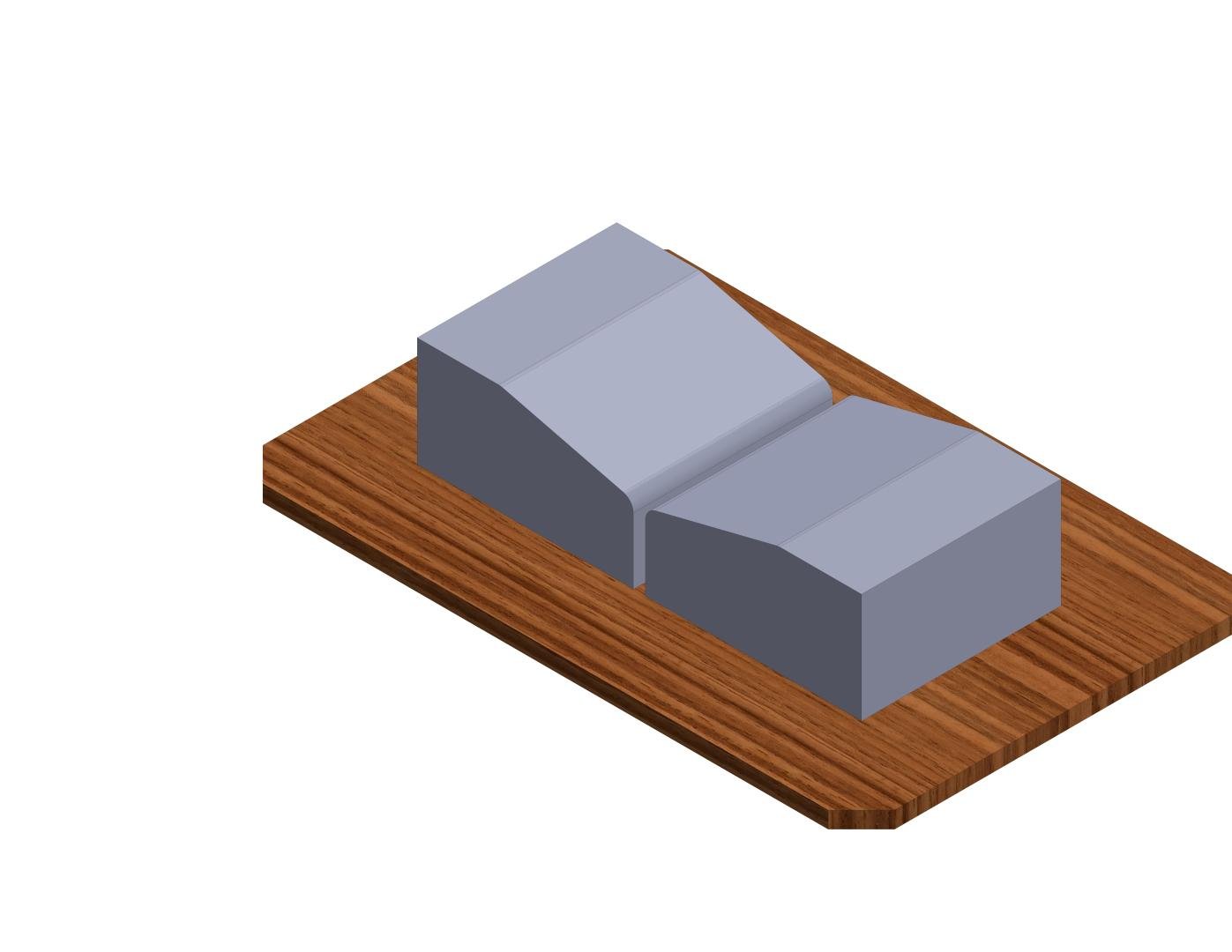

| KERBSTONE BLOCK |  |
330 x 300 x 100 | 240 | 1920 |

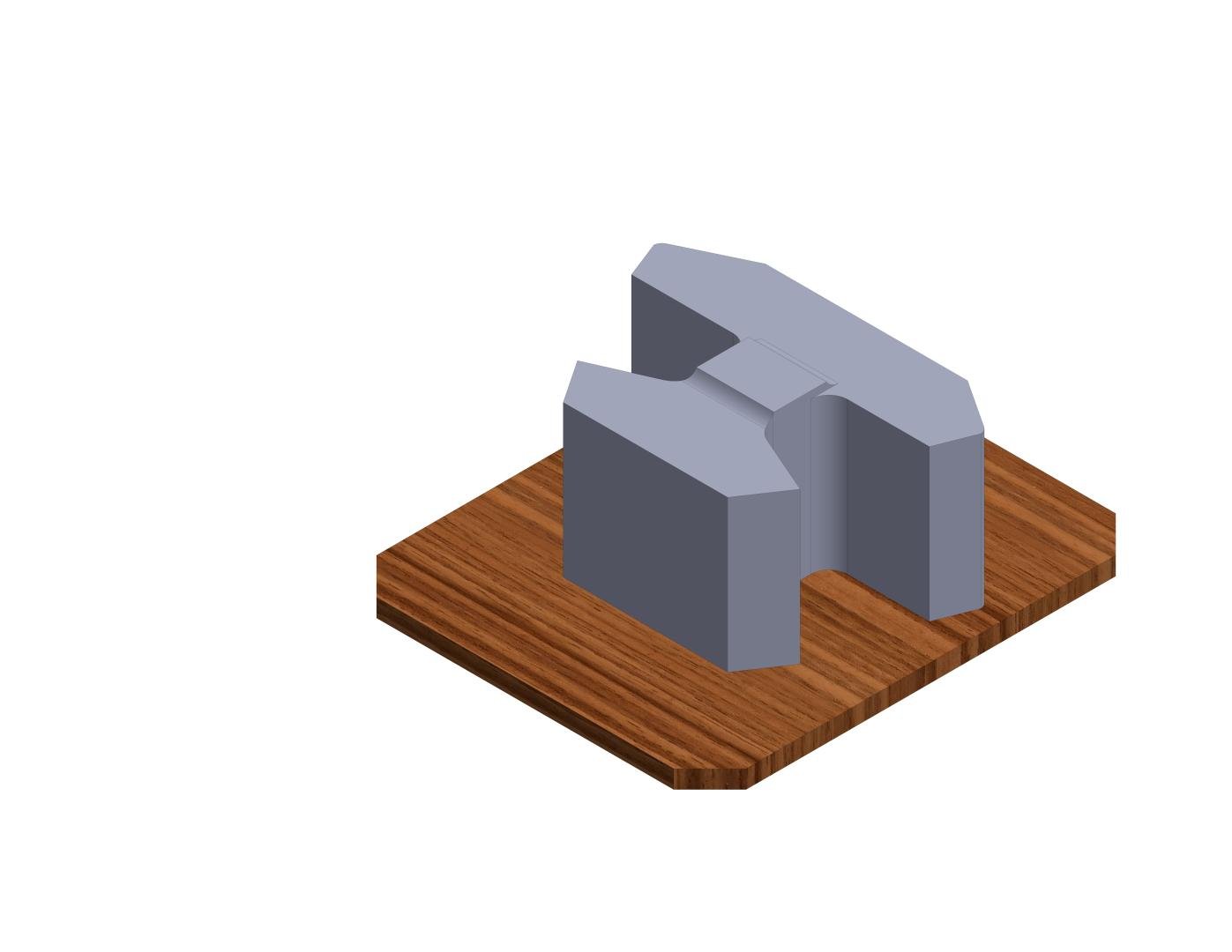

| RETAIN BLOCK |  |
100 x 100 x 100 | 240 | 1920 |

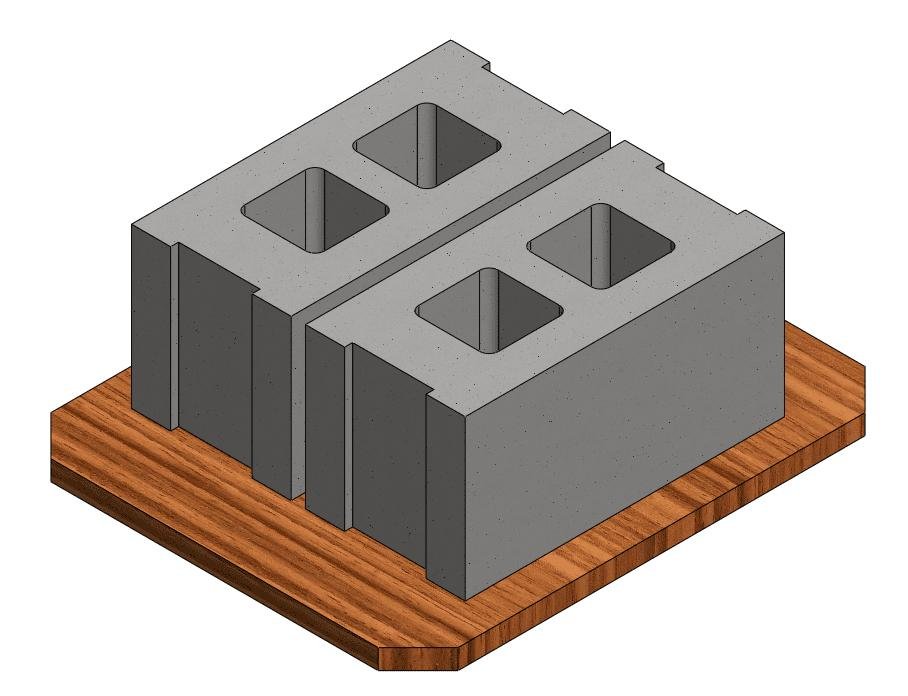

| HOLLOW BLOCK |  |
400 x 200 x 200 | 480 | 1440 |
