FULLY AUTOMATIC CONCRETE SOLID BLOCK MAKING MACHINE
Our company produces and supplies the FAM-1080, a fully automatic fly ash brick making machine. This machine is capable of producing up to 6 bricks at once. The Fly Ash Brick Making Machine (FAM-1080) is a machine with impeccable engineering. Comprises, among other things, powerful vibrators, conveyors, and pan mixers. This Automatic Fly Ash Brick Making Machine model has a production capacity of 11520 bricks per shift (FAM-1080).
Brick & Block Capacity & Sizes

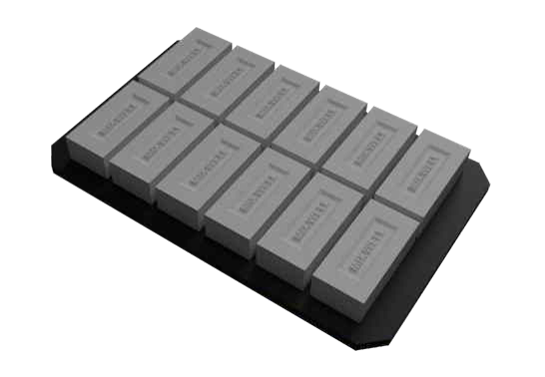

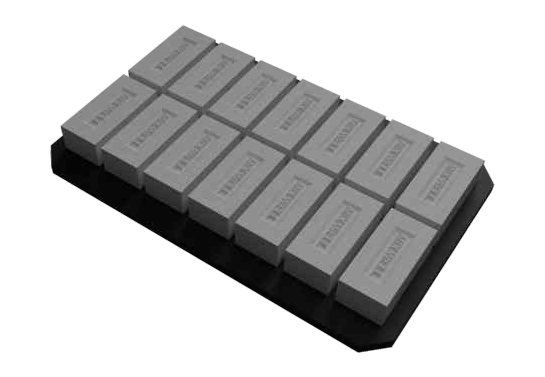

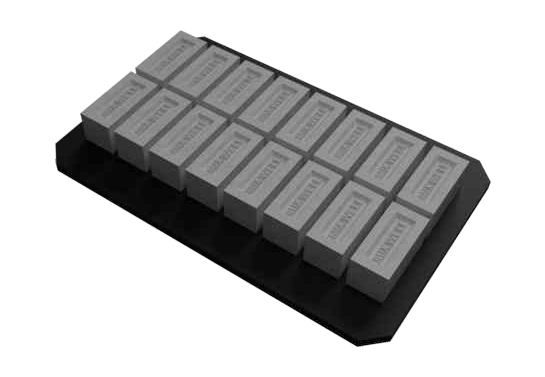

FLY ASH BRICK

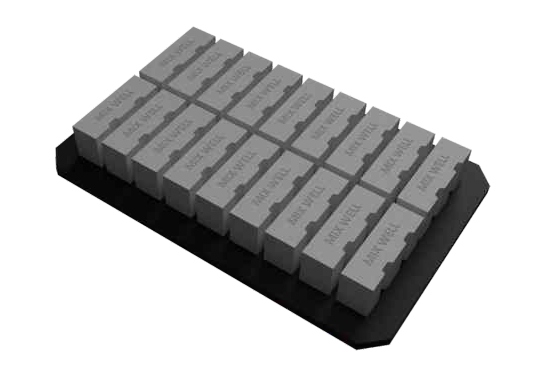

FLY ASH BRICK ON EDGE
FLY ASH BRICK
FLY ASH BRICK

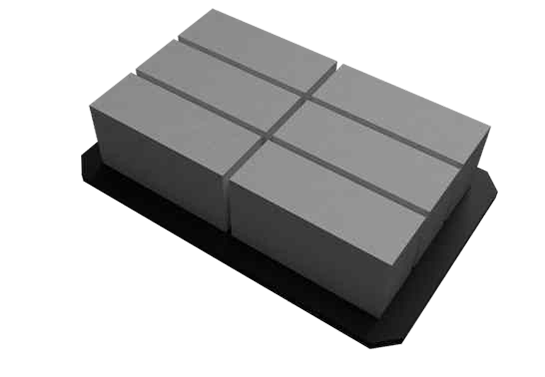

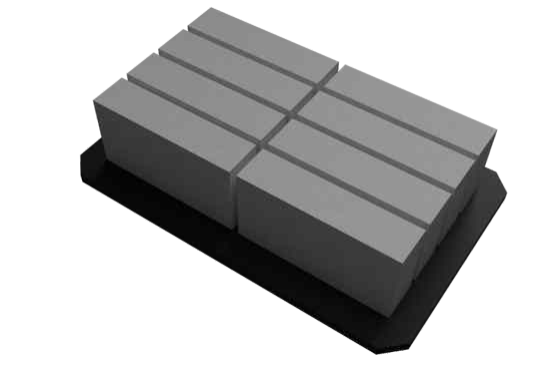

SOLID CONCRETE BLOCK
.

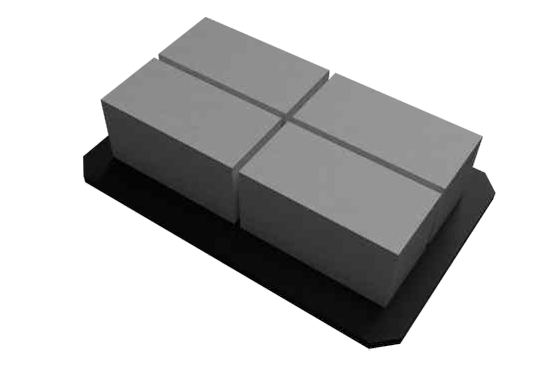

SOLID CONCRETE BLOCK
SOLID CONCRETE BLOCK

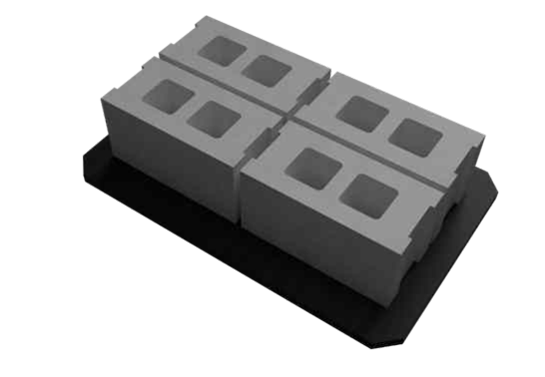

HOLLOW BLOCK

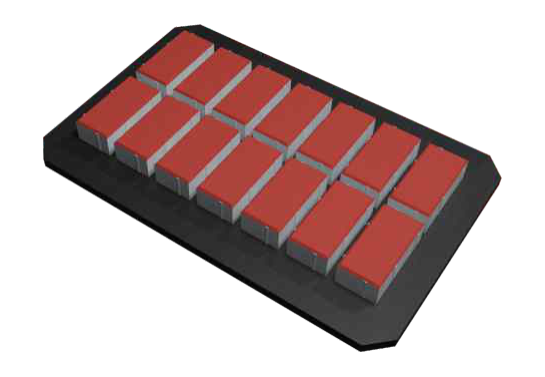

ZIG ZAG PAVER BLOCK

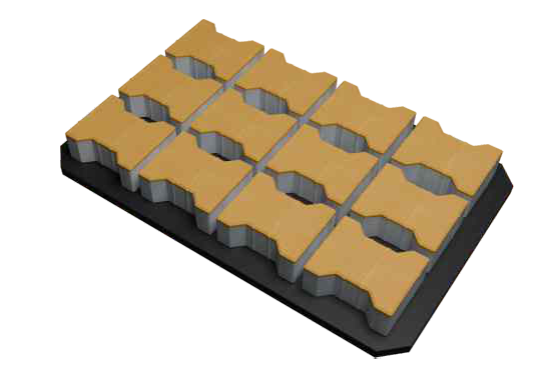

I SHAPE PAVER BLOCK
BRICK PAVER

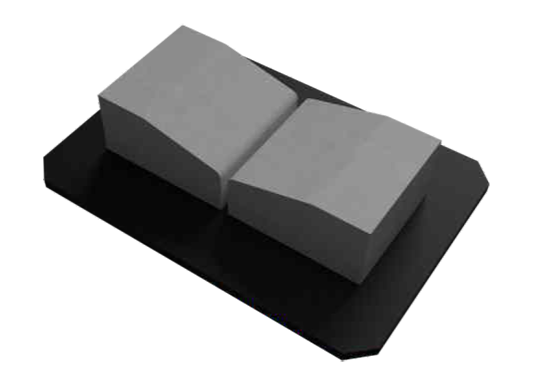

CURVE STONE BLOCK
Technical Specifications
| Technical Details | HP/Cap. |
|---|---|
| Vibrator Motor | 7.5 HP (5.6 KW) |
| Oil Cooling | Water Cooling 36 inch |
| Control Panel | WIFI SCADA SYSTEM + PLC BASED WITH TOUCH SCREEN |
| Pallet Feeding | Automatic |
| Mixer Type | Pan Mixer |
| Mixer Capacity | 400 kgs 1 nos |
| Pan Mixer Motor | 10 HP / 7.45 KW |
| Pan Mixer Gear Box | HELICAL BEWEL Gear Box |
| Mixer Speed | 24-28 RPM |
| Mixing Arms | 2 Nos. per Mixer |
| Crushing Rollers | 2 Nos. per Mixer |
| Pan Mixer Feeding | Manual / Automatic Feeding Available as Optional |
| Pan Mixer Gate | Manual / Hydraulic Gate Available as Optional |
| Total Power | 26.5 HP / 19.38 KW |
| Other | LATEST GERMAN TECHNOLOGY HYDRAULIC + VIBRATION TYPE + FOUR IN ONE MODEL LIKE BRICK + PAVER BLOCK + SOLID BLOCK + HOLLOW BLOCK |
| Technical Details | HP/Cap. |
|---|---|
| Pallet Size | 610 X 550 X 18 MM |
| Bricks Production Capacity per hour | 1440 Bricks/Hour |
| Bricks Production Capacity per 8 hour | 11520 Bricks/Hour |
| Belt Conveyor Width | 500 mm |
| Belt Conveyor Power | 2 HP / 1.5 KW |
| Belt Conveyor Feeding Capacity | 4 MT / Hour |
| Bricks Press Type | Automatic Hydraulic Bricks Press with HIGH VIBRATION Technology |
| Bricks Press Body | Heavy Duty Window type Body Fabricated from PIPE |
| Bricks Press Capacity | 1440 Bricks/Hour |
| Bricks per Stroke | 6 Bricks |
| Bricks Size(mm) | 230 (L) X 110 (W) X 75 (H) Size Option Available |
| Hydraulic Motor | 10 HP / 7.5 KW |
| Trolley Feeder Motor | 2 HP / 1.5 KW |
| Hyd. Oil Tank Capacity | 500 LITER |
| Hydraulic Valves | YUKEN Make / 24 DC |
| High Pressure Pump | YUKEN Make van pump |
| High Flow Pump | YUKEN Make van pump |
See the Machine in Action
FAM-2160 Comparison
Compare FAM-1080 With
Other Models
Compare all bricks & block machine production capacity and product sizes. FAM-1080 delivers maximum output for large-scale production.
| Product | Size | FAM-1080 | FAM-1440 | FAM-1800 | FAM-2160 | FAM-2520 |
|---|---|---|---|---|---|---|
|
Fly Ash Brick
|
230x 110 x 75 MM
190 x 90 x 90 MM 250 x 120 x 75 MM |
1440 1920 1440 |
1920 2400 1920 |
2400 2880 1920 |
2880 3360 2400 |
3360 3840 2880 |
|
Fly Ash Brick on Edge
|
230 x 110 x 75 MM
|
2400 | 2880 | 3360 | 3,840 | 4320 |
|
Solid Concrete Block
|
400 x 200 x 200 MM
400 x 200 x 150 MM 400 x 200 x 100 MM |
480 480 720 |
480 720 960 |
720 960 1200 |
720 960 1440 |
960 1440 1920 |
|
Hollow Block
|
400 x 200 x 200 MM
|
480 | 480 | 720 | 720 | 960 |
|
Zigzag Paver
|
225 x 112.5 x 60 MM
|
1080 | 1440 | 1800 | 2160 | 2520 |
|
I Shape Paver
|
200 x 165 x 60 MM
|
720 | 1080 | 1440 | 1620 | 2160 |
|
Brick Paver
|
200 x 100 x 100 MM
|
1080 | 1440 | 1800 | 2160 | 2520 |
|
Curve Stone Block
|
300 x 300 x 100 MM
|
240 | 240 | 480 | 480 | 480 |
High Production Capacity Machine
FAM-1080 machine delivers maximum output capacity for bricks, paver blocks and concrete products with high efficiency and strong performance.

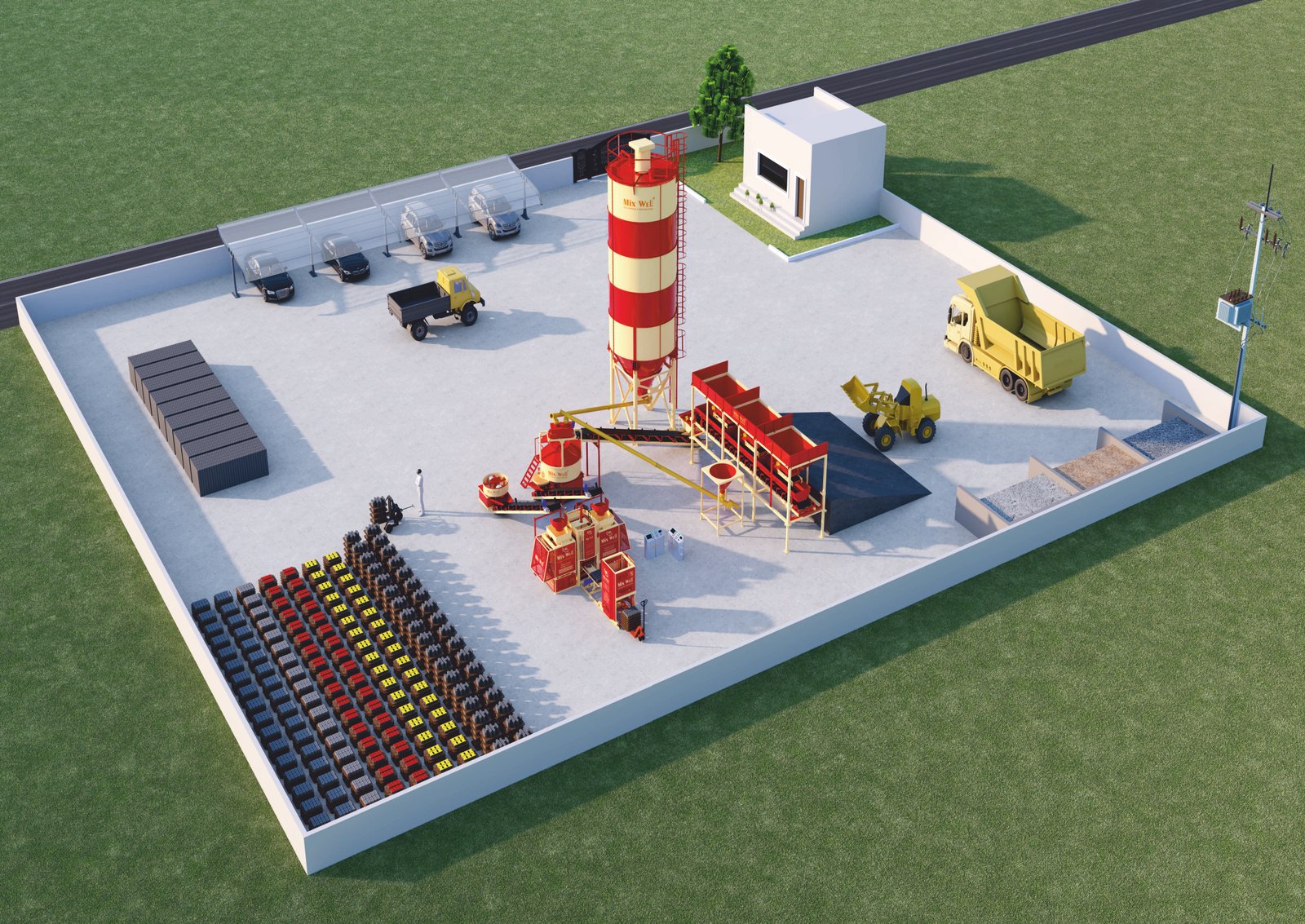

Plant Layout
Our advanced brick making plant is designed for smooth material flow, efficient production, and high operational performance. Hover over the numbered points to explore each major component of the setup.
| 01 | Silo |
| 02 | Batching Plant |
| 03 | Cement Hopper |
| 04 | 30 Foot Belt Conveyor |
| 05 | Pan Mixer |
| 06 | Color Mixer |
| 07 | Main Hydraulic Press |
| 08 | Auto Brick Stacker |
| 09 | Control Panel |
