READY MIX CONCRETE PLANT 36
The RMB 36 Block Machine with RMC is a fully automatic concrete block, fly ash brick, and paver block manufacturing system integrated with a Ready Mix Concrete (RMC) batching unit. The plant is designed for continuous production of high-quality construction blocks using cement, fly ash, sand, aggregates, and additives. With PLC-based automation, hydraulic pressing technology, and high-frequency vibration systems, the machine delivers consistent strength, dimensional accuracy, and high production output. It can manufacture hollow blocks, solid blocks, paver blocks, kerbstones, and other concrete products by changing
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RMB 36 |
| Machine Type | Fully Automatic Block Machine with RMC Plant |
| Production System | Hydraulic + Vibration |
| Control System | PLC Based Automatic Control |
| Brick Production | 30 - 40 Bricks per Cycle |
| Paver Production | 30 Pavers per Cycle |
| Production Capacity | Up to 15,000 - 18,000 Blocks / 8 Hours |
| Paver Capacity | Up to 12,000 - 15,000 Pavers / 8 Hours |
| Pallet Size | 750 × 610 x 18 mm |
| Maximum Product Height | 200 mm |
| Minimum Product Height | 40 - 50 mm |
| Hydraulic Pressure | 120 - 150 Bar |
| Vibration System | Servo / Hydraulic Vibrators |
| Aggregate Feeding | Automatic Batcher |
| Mixer Type | Turbo Pan Mixer |
| RMC Plant Capacity | 30 - 36 m³/hr |
| Cement Silo Capacity | 50 - 100 Ton |
| Material Feeding | Belt Conveyor System |
| Power Requirement | 120 - 150 kW (Approx.) |
| Labor Requirement | 2 - 3 Operators |
| Mould Change System | Quick Change Design |
| Operation Mode | Fully Automatic / Manual Override |
See the Machine in Action

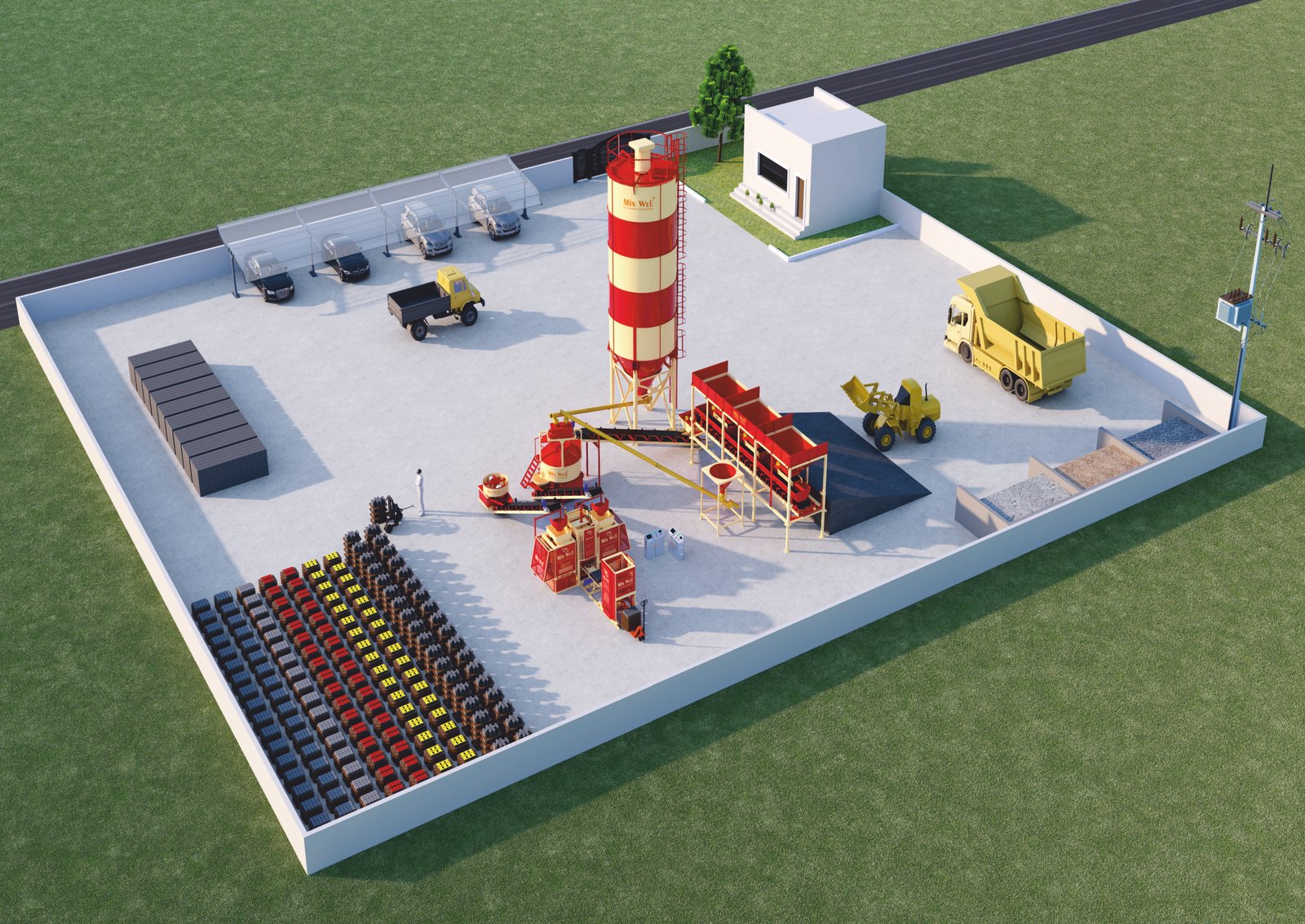

Plant Layout
Our advanced brick making plant is designed for smooth material flow, efficient production, and high operational performance. Hover over the numbered points to explore each major component of the setup.
| 01 | Silo |
| 02 | Batching Plant |
| 03 | Cement Hopper |
| 04 | 30 Foot Belt Conveyor |
| 05 | Pan Mixer |
| 06 | Color Mixer |
| 07 | Main Hydraulic Press |
| 08 | Auto Brick Stacker |
| 09 | Control Panel |
